High-Performance PV Branch Plug

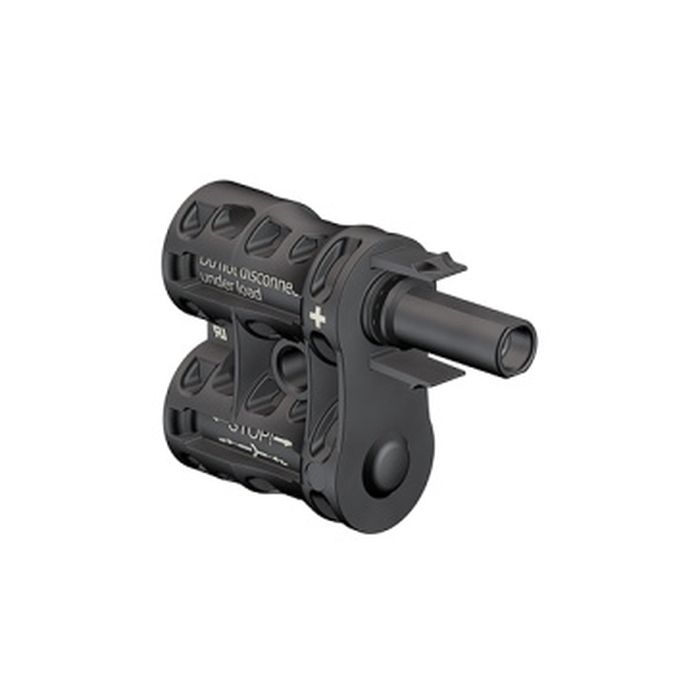

The Staubli Branch Plug MC4-Evo (PV-AZS4-EVO 2-UR) is a reliable and adaptable direct current (DC) connector tailored for photovoltaic (PV) systems. Specifically designed for safe and effective branching in solar installations, it is compatible with both MC4 and MC4-Evo 2 connectors, ensuring easy integration with your existing PV cabling.

Reliable and Durable Connection

Utilising Staubli's advanced MULTILAM contact technology, this branch plug guarantees consistently low contact resistance. This feature minimises power loss and enhances long-term reliability. It is rated for DC 1500V operation and complies with IEC 62852 and UL 6703 standards, ensuring a safe and effective solution for your energy needs.

Advanced Weather and Environmental Protection

• IP65/IP68 rated for excellent resistance to dust and water ingress
• Salt mist spray tested, suitable for extreme environmental conditions
• UV-resistant insulation material ensures long-term outdoor performance

Easy Installation and Secure Locking

The Staubli Branch Plug MC4-Evo (PV-AZS4-EVO 2-UR) features a plug-and-play design, allowing for quick and hassle-free installation without the need for crimping or torqueing. Its secure locking mechanism guarantees a firm connection, preventing accidental disconnection, even in high-wind or vibration-prone environments.

High Safety and Electrical Performance

• Test voltage of 8kV ensures superior electrical safety
• Rated impulse voltage of 16kV for enhanced surge protection
• Flame-retardant UL94-V0 insulation improves fire resistance

Designed for Large-Scale Solar Installations

The Staubli Branch Plug MC4-Evo (PV-AZS4-EVO 2-UR) is perfect for high-voltage photovoltaic systems, supporting rated currents of 60A (IEC) and 50A (UL). Its design promotes easy scalability, enabling efficient parallel connections in commercial and utility-scale solar installations.
